USAUSA-NYLake Placid

Olympic Jumping Complex

Data | History | Hill records | Competitions | Contact | Map | Photo gallery | Articles | Comments

.

MacKenzie Intervale Ski Jump:

Hill Size: HS 128
K-Point: 115 m
Men Winter Hill record: 136.0 m (Ryōyū Kobayashi JPN, 2023-02-11, WC)
Men Summer Hill record: 132.0 m (Clemens Aigner AUT, 2023-10-07, COC)
Women Winter Hill record: 125.0 m (Lindsey Van USA, 2004-12-31)
Inrun length: 98.07 m
Inrun angle: 35.1°
Take-off length: 6.89 m
Take-off angle: 11°
Take-off height: 3.08 m
Speed: 93.1 km/h
Ratio h/n: 0.568
Landing angle: 34.1°
Hill certificate: Hill certificate
Conversions: 2021
Coordinates: 44.255347, -73.966058 Google Maps OpenStreetMap
K115 (2021-...)K120 (1994-2021)K114 (1979-1994)K72 (1965-1977)K61 (1927-1965)K50 (1923-1927)K35 (1920-1923)

MacKenzie Intervale Ski Jump:

Hill Size: HS 100
K-Point: 90 m
Men Winter Hill record: 100.5 m (Sakutarō Kobayashi JPN, 2023-01-15, UNI)
Men Summer Hill record: 102.0 m (Ben Loomis USA, 2024-10-12, N-USA)
Women Winter Hill record: 95.0 m (Annika Belshaw USA, 2022-03-26, COC)
Women Summer Hill record: 103.0 m (Natalie Eilers CAN, 2022-10-07, COC)
103.0 m (Natalie Eilers CAN, 2022-10-07, COC)
Inrun length: 89.19 m
Inrun angle: 35.2°
Take-off length: 6.3 m
Take-off angle: 10.5°
Take-off height: 2.68 m
Speed: 86.1 km/h
Ratio h/n: 0.555
Landing angle: 34°
Hill certificate: Hill certificate
Conversions: 2021
Coordinates: 44.255249, -73.965578 Google Maps OpenStreetMap
K90 (2021-...)K90 (1994-2021)K86 (1978-1994)

MacKenzie Intervale Ski Jump:

K-Point: 70 m
Status: project not realized
K-Point: 60 m
Plastic matting: no
Year of construction: 2021
Status: project not realized
Coordinates: 44.255233, -73.964651 Google Maps OpenStreetMap
Hill Size: HS 53
K-Point: 48 m
Conversions: 2022-2023
Status: operating
Coordinates: 44.256375, -73.964889 Google Maps OpenStreetMap
K-Point: 20 m
Year of destruction: 2021
Status: destroyed
Coordinates: 44.256280, -73.964434 Google Maps OpenStreetMap
K-Point: 18 m
Plastic matting: yes
Year of destruction: 2011
Status: destroyed
Coordinates: 44.257187, -73.964588 Google Maps OpenStreetMap
Hill Size: HS 20
K-Point: 16 m
Further jumps: K9
Year of construction: 2021
Status: operating
Coordinates: 44.255616, -73.964354 Google Maps OpenStreetMap
Further jumps: no
Plastic matting: yes
Year of construction: 1920
Conversions: 1927, 1965, 1979, 1994, 2019-2021
Status: operating
Ski club: Lake Placid Ski Club, NYSEF
Coordinates: 44.255347, -73.966058 Google Maps OpenStreetMap

to top

History:

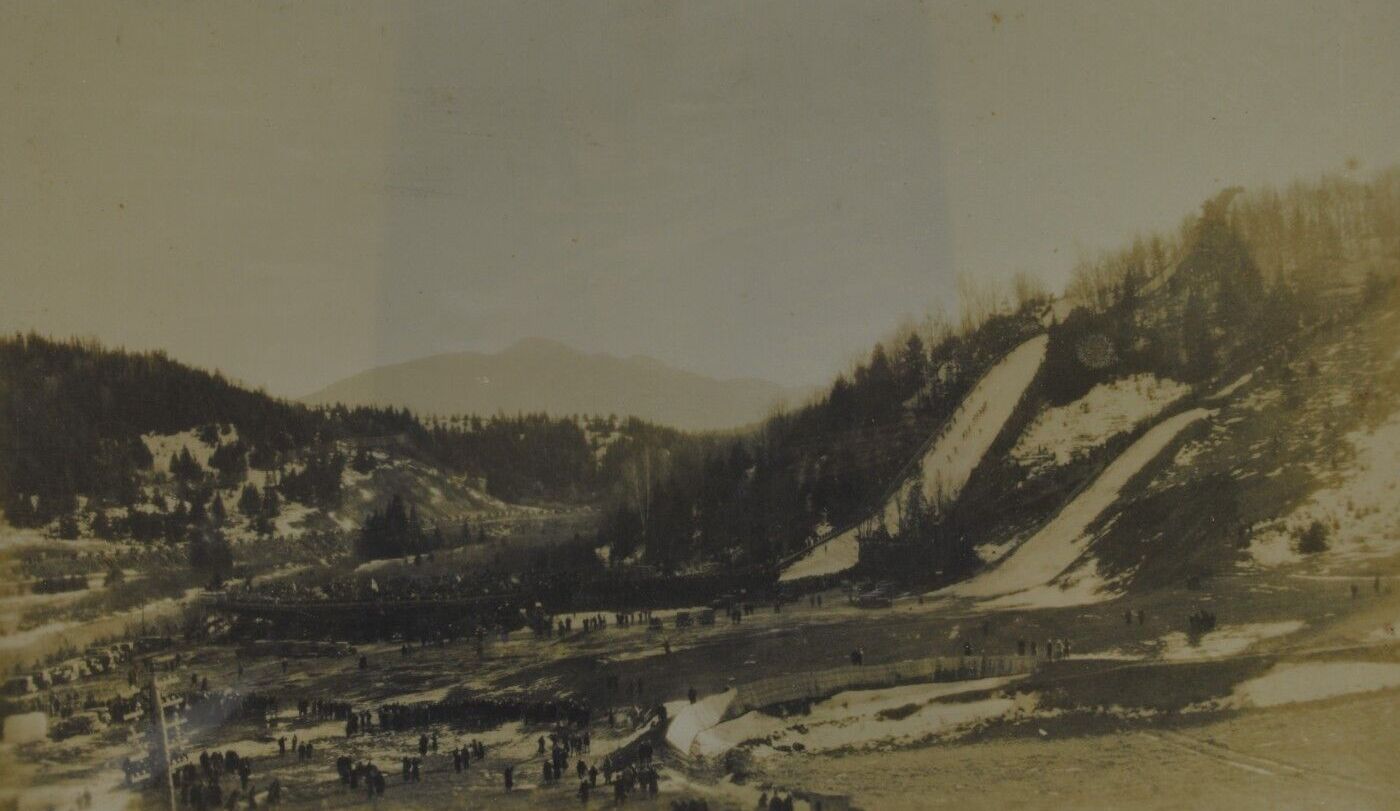

Already around 1904-1905 Lake Placid Club started its ski jumping activities and constructed several small ski jumps. In the early years, around 1917, there were two 10 and 20-meter practicing hills at Golf Hill. The competition-ready 35-meter hill at Intervales was constructed in 1920-21 for $1736 and inaugurated with an attendance of 3,000 spectators on February 21, 1921. A record distance of 124 feet was set by Antony Maurer. Furthermore, Lake Placid Athletic Club operated a 15 and a 35-meter ski jump in town, close to the Olympic stadium, during that time.

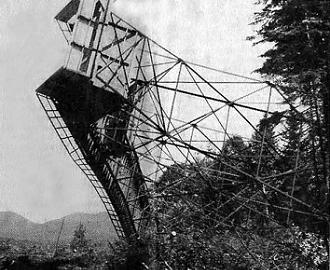

Already in 1923 Intervales ski jump was enlarged into a K50 and in 1927 the conversion works for the 1932 Olympic Winter Games started for a total of around 35,000 USD. First, a new steel-made inrun tower with a height of 20 meters was set up, and then extended by another 3 meters in 1928. Furthermore, spectator stands were built along the landing hill of the K61 ski jump, which was designed by Godfrey Dewey, and also around the outrun. Around 10,000 spectators then witnessed a triple victory for Norway in the Olympic event on 1932-02-12: Birger Ruud claimed the gold medal ahead of Hans Beck, who set the hill record of 71.5 meters, and Kåre Walberg.
The large hill was reused without many changes also for the 1950 Nordic WSC, where Hans Bjørnstad claimed the ski jumping title. From the mid-1950s on the annual Kennedy Games event was held at Lake Placid, sometimes with world-class international participants. Presumably, in 1965 the hill was modernized as a K72 and in 1972 the Universiade student games were hosted there.

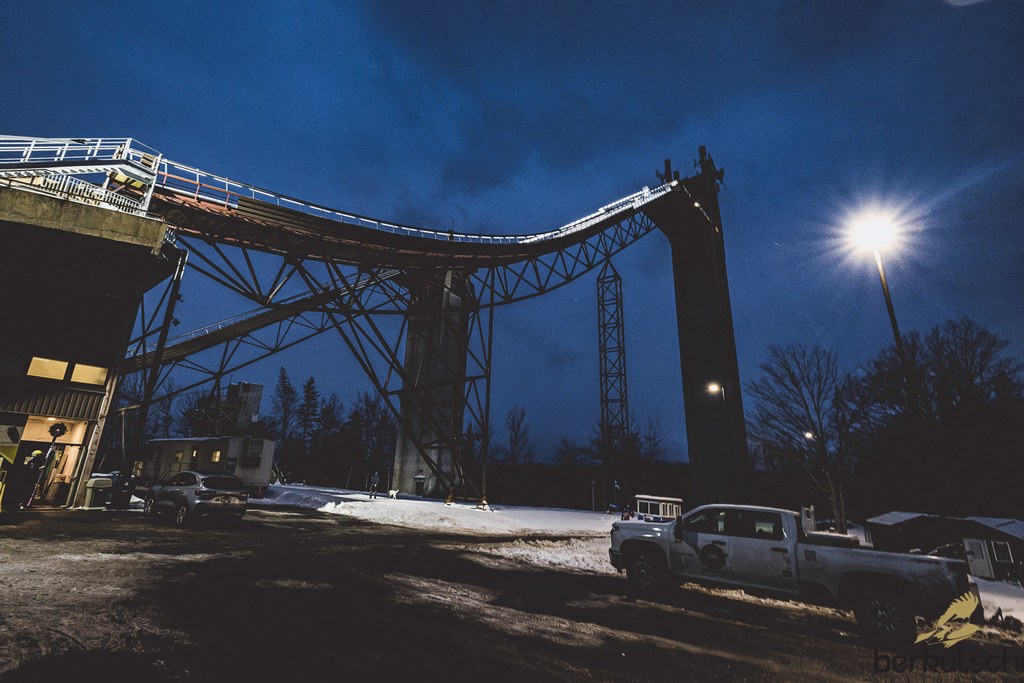

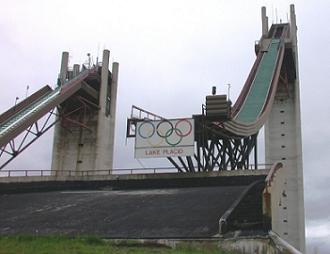

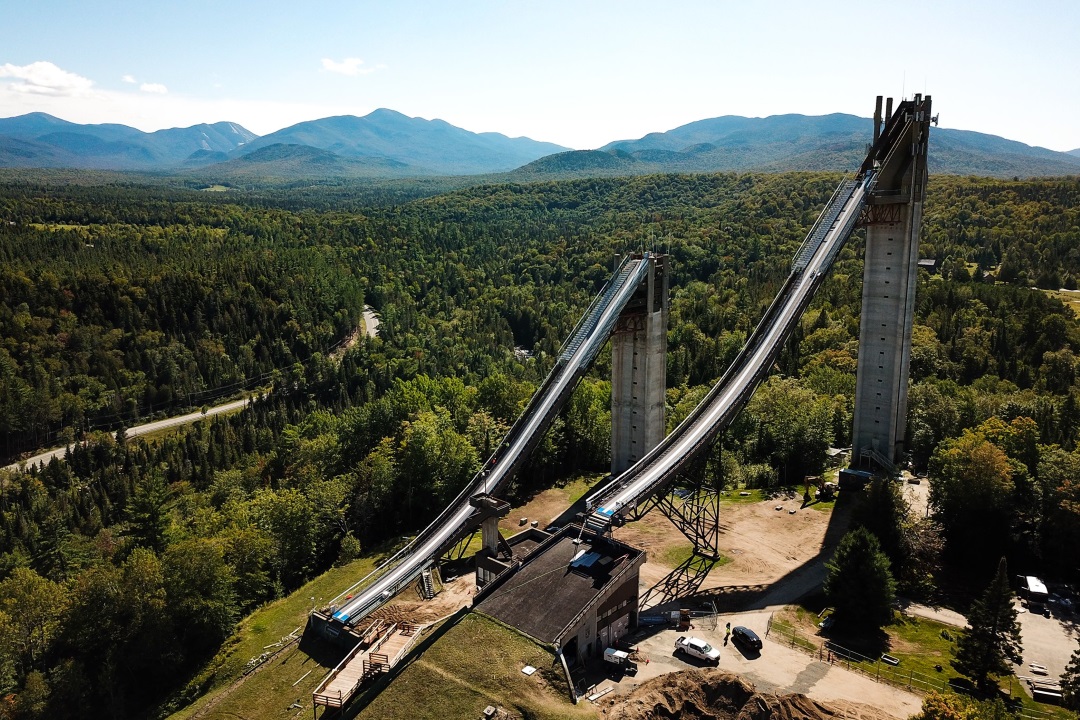

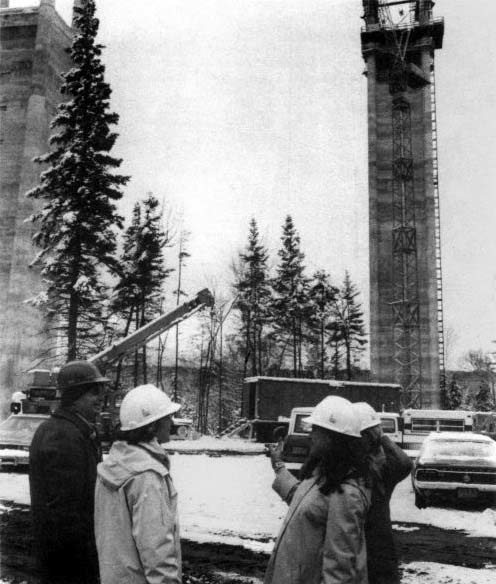

In 1977 the old inrun tower was demolished in order to rebuild a completely new facility for the 1980 Olympics. The K86 and K114 ski jumps with steel and reinforced concrete inrun towers were designed by Marl Martitsch. The normal hill was completed and inaugurated in December 1978 and the large hill could be finished just in time for the Olympic test events in February 1979. The Intervale hills were then named after Ronald Malcolm MacKenzie, who had been president of the Olympic organizing committee, but passed away in 1978.

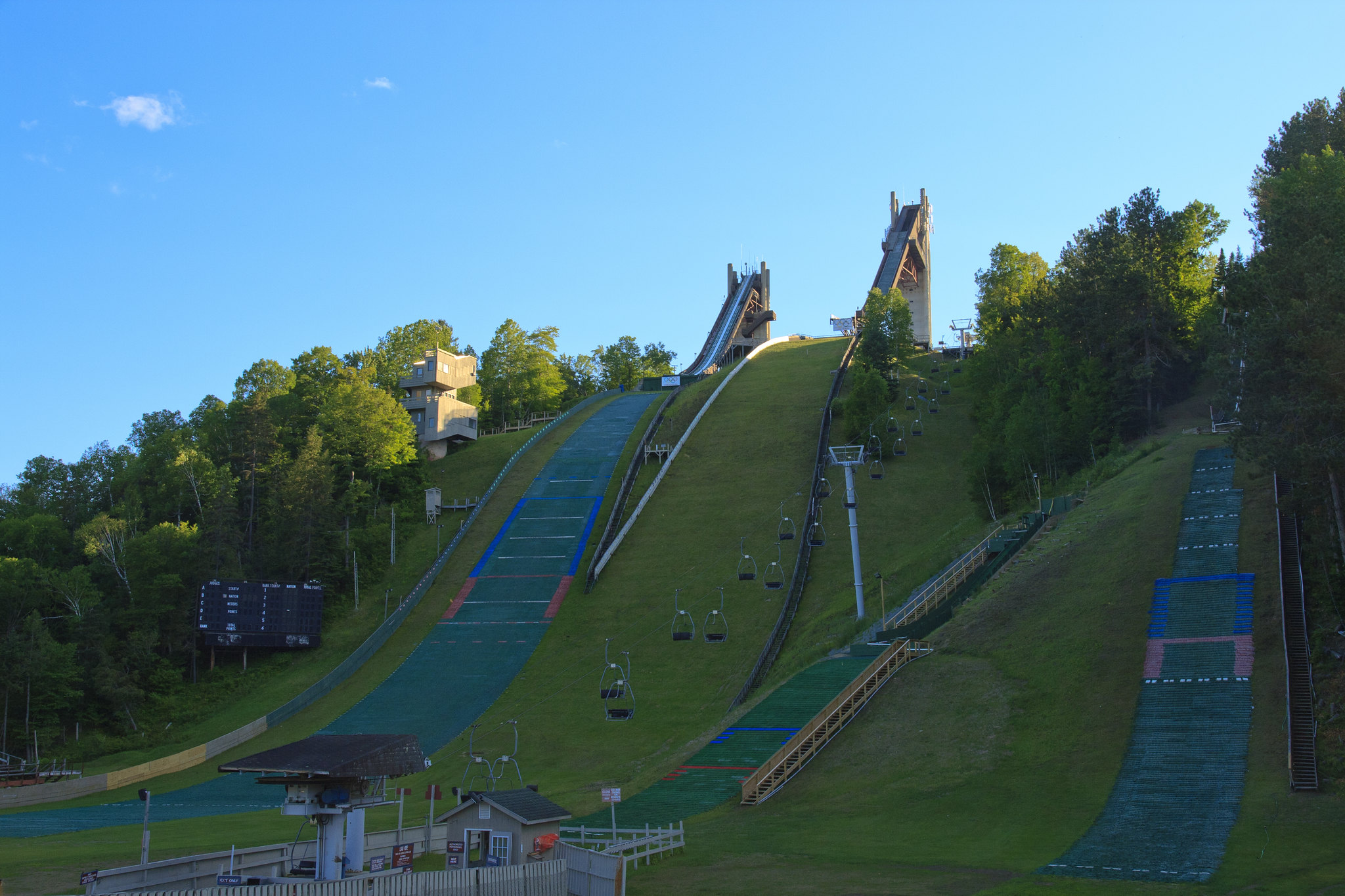

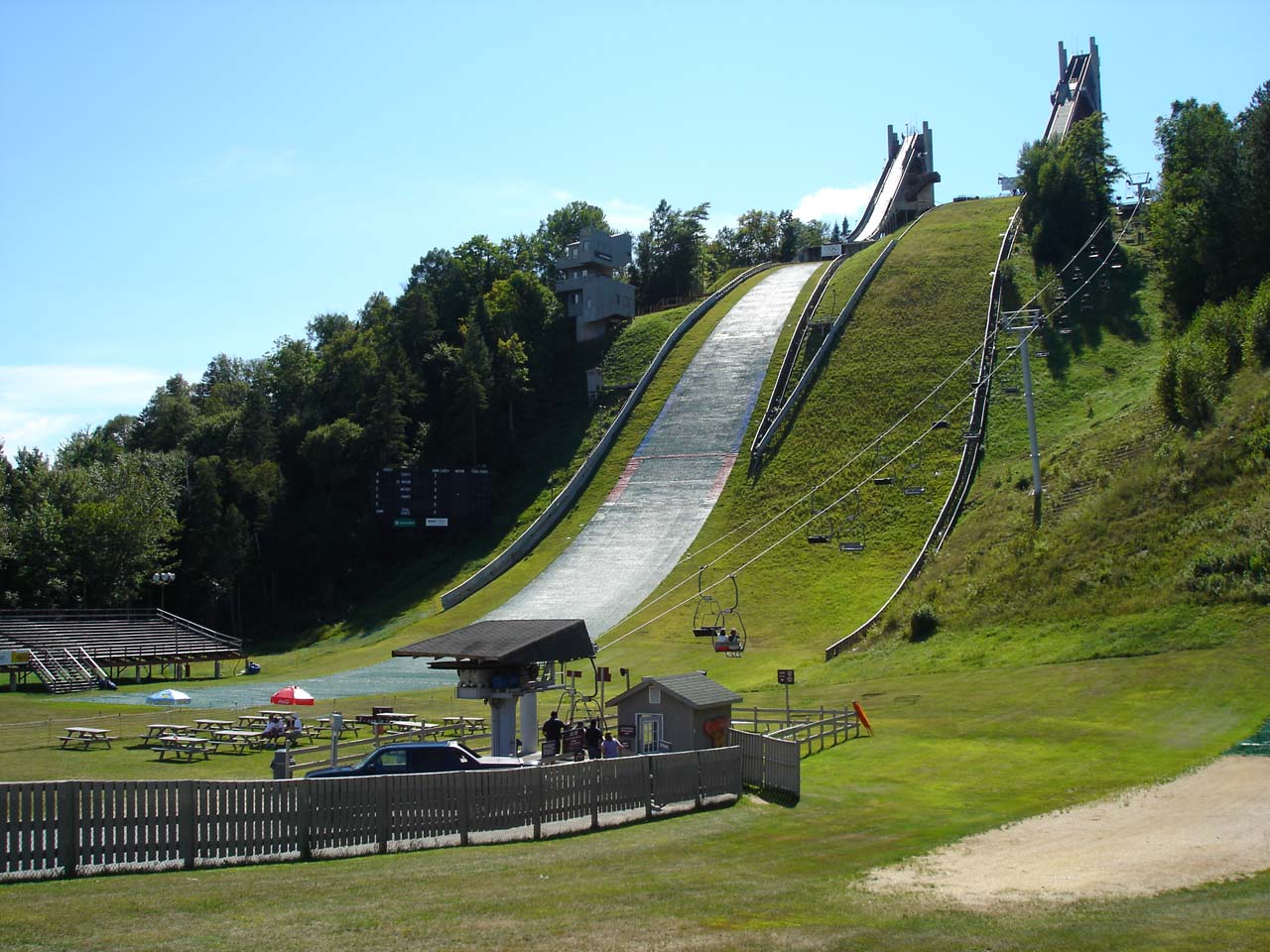

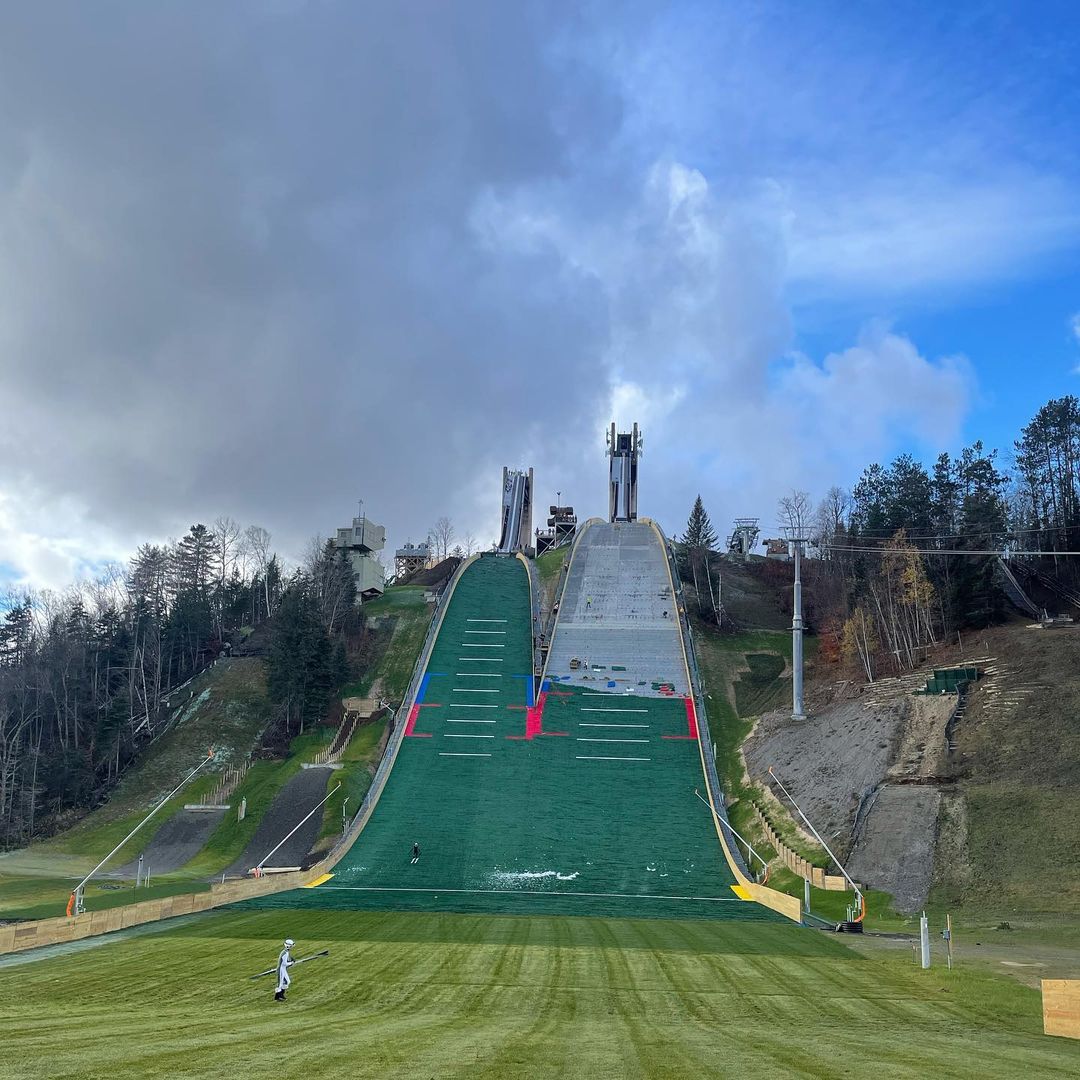

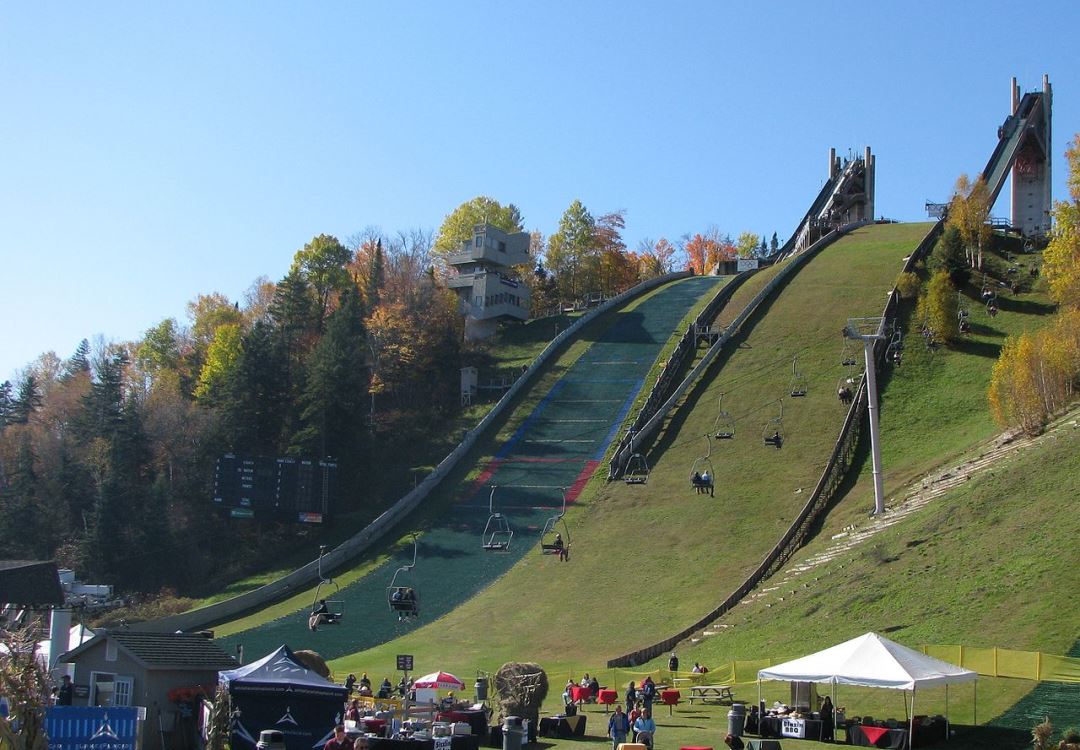

During the 1980s both ski jumping hills had been part of the ski jumping World Cup quite frequently and international summer events had been held on the K86, which was covered with plastic mattings in 1983. Around the same time the plastic-covered junior hills K48, K20 and K10 were established. A further major event was the Junior-WSC in 1986.
The hills were modernized in 1994 and have since been re-profiled as K120 and K90. They are still regularly used for training and national-level tournaments, and once in a while also for international competitions. In fall 2011 the outdated K18 ski jump was deconstructed and a new K20 hill was set up in between K120 and K48.

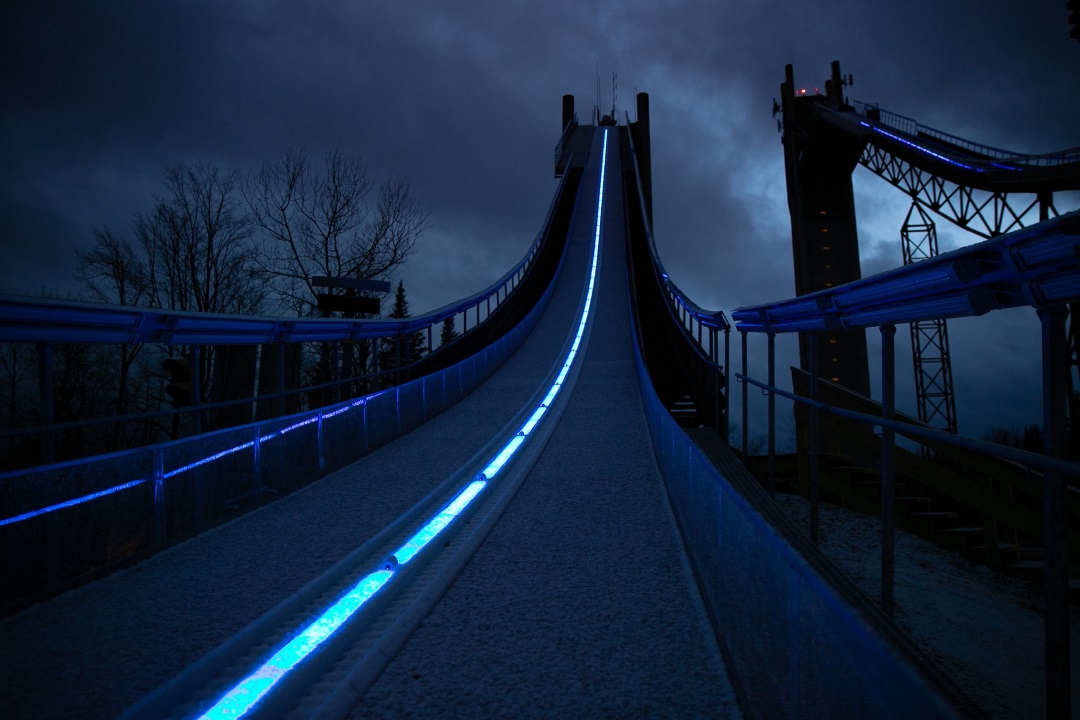

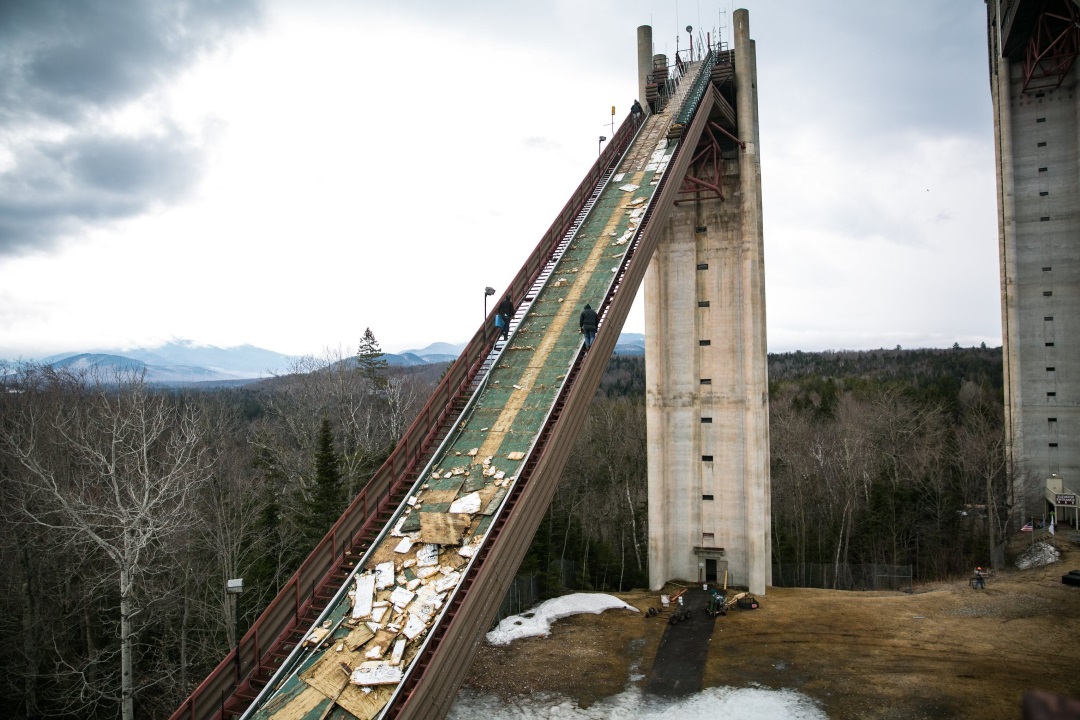

In preparation for the 2023 Winter Universiade, both larger ski jumps were renovated at a cost of around US$ 3 million. In summer 2019, the start of the modernisation works took place. Completion took place in autumn 2021. The ski jumps are equipped with a frozen inrun track system and their profiles were adjusted to current requirements. The cross-country ski centre and trails were also completely reconstructed. The reopening took place with the US pre-Olympic trials on Christmas Day 2021. After almost 25 years, the Ski Jumping World Cup returned to Lake Placid in February 2023. In addition, the K48 hill was modernized.
